Its air tightness passed rigorous smoke isolation test in the close state.
It can be linked with the fan motor to realize zero wind resistance operation in the fully open state.
Strong pressure resistance, can long-term bear strong wind making by high negative pressure fan without deformation.
High-strength plastic coupling and aluminum alloy body, with anti-corrosion to be adapted to all kinds of harsh animal husbandry environment, or marine environment.
Its air tightness passed rigorous smoke isolation test in the close state.
It can be linked with the fan motor to realize zero wind resistance operation in the fully open state.
Strong pressure resistance, can long-term bear strong wind making by high negative pressure fan without deformation.
High-strength plastic coupling and aluminum alloy body, with anti-corrosion to be adapted to all kinds of harsh animal husbandry environment, or marine environment.

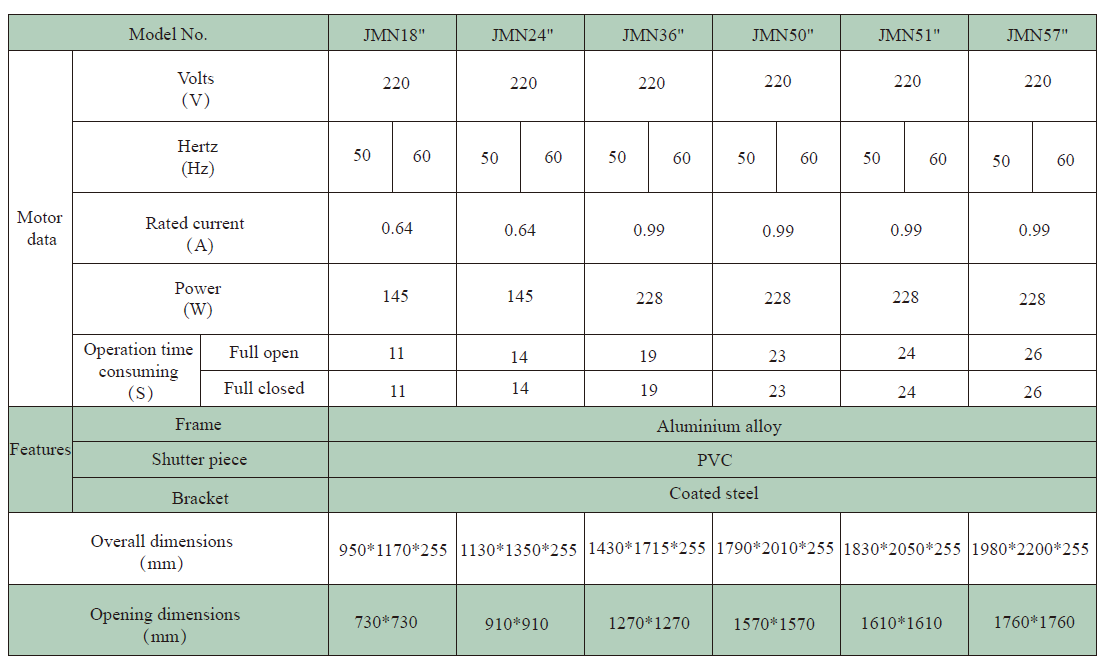

Model No. | JMN18" | JMN24" | JMN36" | JMN50" | JMN51" | JMN57" | ||
Motor data | Volts (V) | 220 | 220 | 220 | 220 | 220 | 220 | |
Hertz (HZ) | 50 | 50 | 50 | 50 | 50 | 50 | ||
*18",24", 36", 50", 51" and 57" options include other voltages not mentioned above, single phase or 3 phase, 50Hz or 60Hz. | ||||||||
Rated current (A) | 0.64 | 0.64 | 0.99 | 0.99 | 0.99 | 0.99 | ||
Power (W) | 145 | 145 | 228 | 228 | 228 | 228 | ||
Time consuming (S) | Full open | 11 | 14 | 19 | 23 | 24 | 26 | |
Full closed | 11 | 14 | 19 | 23 | 24 | 26 | ||
Features | Frame | Aluminium alloy | ||||||
Shutter piece | PVC | |||||||
Bracket | Coated steel |
Model No. & Size | Overall dimensions(mm) | Opening dimensions on wall (mm) |
JMN18" | 950*1170*255 | 730*730 |
JMN24" | 1130*1350*255 | 910*910 |
JMN36" | 1430*1715*255 | 1270*1270 |
JMN50" | 1790*2010*255 | 1570*1570 |
JMN51" | 1830*2050*255 | 1610*1610 |
JMN57" | 1980*2200*255 | 1760*1760 |
Model No. | JMN18" | JMN24" | JMN36" | JMN50" | JMN51" | JMN57" | ||
Motor data | Volts (V) | 220 | 220 | 220 | 220 | 220 | 220 | |
Hertz (HZ) | 50 | 50 | 50 | 50 | 50 | 50 | ||
*18",24", 36", 50", 51" and 57" options include other voltages not mentioned above, single phase or 3 phase, 50Hz or 60Hz. | ||||||||
Rated current (A) | 0.64 | 0.64 | 0.99 | 0.99 | 0.99 | 0.99 | ||
Power (W) | 145 | 145 | 228 | 228 | 228 | 228 | ||
Time consuming (S) | Full open | 11 | 14 | 19 | 23 | 24 | 26 | |
Full closed | 11 | 14 | 19 | 23 | 24 | 26 | ||
Features | Frame | Aluminium alloy | ||||||
Shutter piece | PVC | |||||||
Bracket | Coated steel |
Model No. & Size | Overall dimensions(mm) | Opening dimensions on wall (mm) |
JMN18" | 950*1170*255 | 730*730 |
JMN24" | 1130*1350*255 | 910*910 |
JMN36" | 1430*1715*255 | 1270*1270 |
JMN50" | 1790*2010*255 | 1570*1570 |
JMN51" | 1830*2050*255 | 1610*1610 |
JMN57" | 1980*2200*255 | 1760*1760 |
